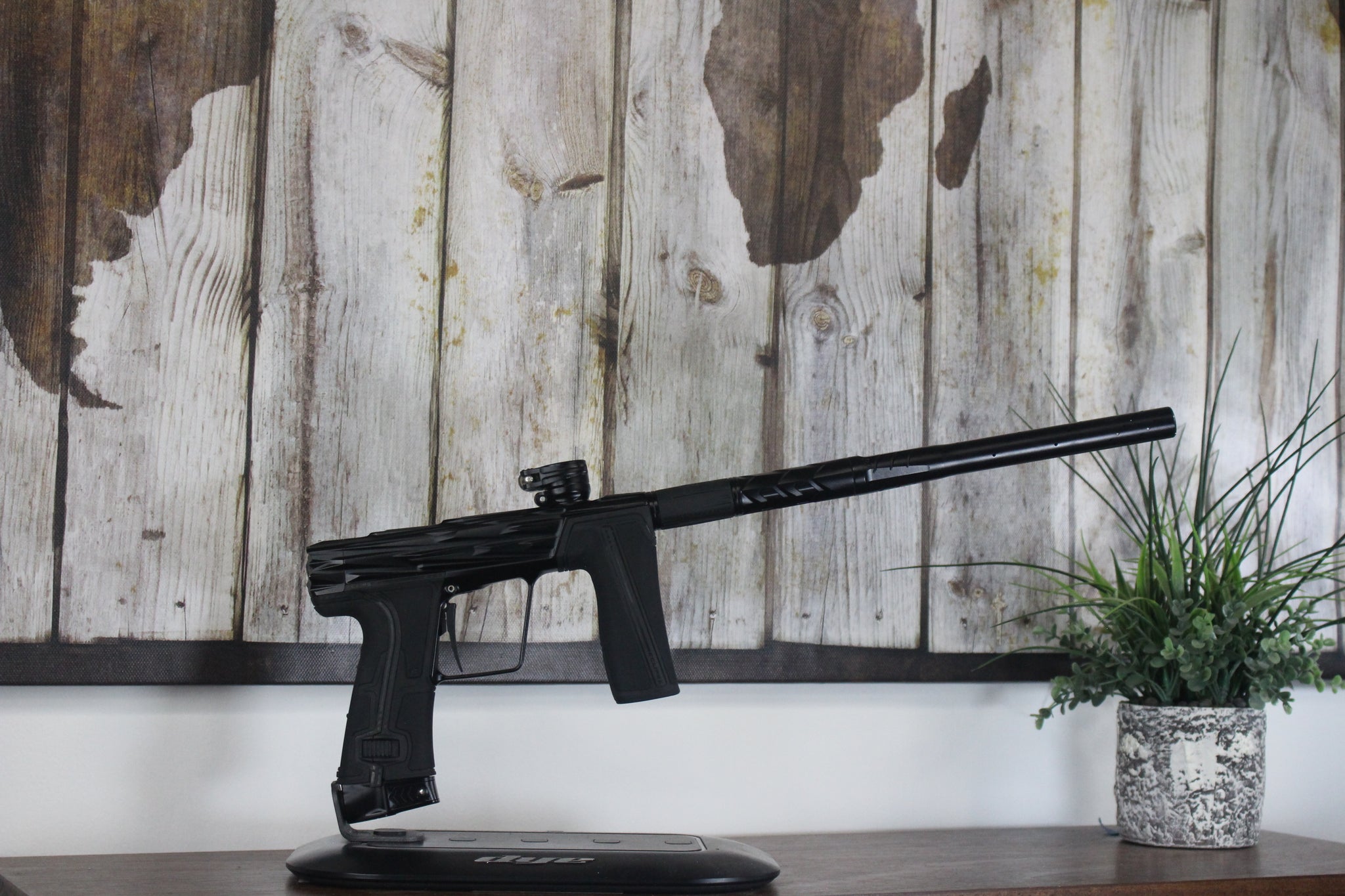

HK Army RAZR Geo R5 - Onyx

Introducing the RAZR: A custom-milled Planet Eclipse Geo R5 born from the collaboration between Planet Eclipse and HK Army. This limited-edition paintball marker combines cutting-edge performance with a striking aesthetic inspired by the natural beauty of geode rock formations. The sharp, shard-like milling captures the intricate structure of crystalline geodes, giving the marker a bold, angular look that stands out.

The Geo R5 platform makes giant leaps forwards with a host of incredible new features, a brand new GR drivetrain and an ergonomic package to reignite the passion for the Geo once more.

The IV core drivetrain had become synonymous with the Geo line. Originally developed for the iconic GSL, its launch was a defining moment for spool valve marker technology. It was the first spool valve marker to incorporate Breech Sensing technology into the drivetrain, finally pushing spool valve efficiency into the realms of poppet valve markers.

How does this Breech Sensing technology work? Simply put, it uses the pulse of air behind the ball to help close off the main valve at a predetermined valve chamber pressure. By closing off the main valve before the valve chamber is allowed to fully empty, it traps tail-end air that is at a pressure that would have no effect on the velocity of the paintball. This trapped air in the valve chamber would otherwise have been released, and wasted, down the barrel. By trapping this otherwise wasted air, it requires less air to top the firing chamber back up ready for the next shot. The result? A huge increase in efficiency, with zero downsides. It was a truly groundbreaking piece of technology in paintball marker development. But, as always, Planet Eclipse continually pushes forward to make improvements wherever possible, the result of which brings us an all new drivetrain to power the next generation of Geo fans.

The Eclipse Geo R5 introduces the GR drivetrain. A brand new design with the intent of improving every aspect of the marker’s performance. From efficiency, to feel, to sound signature, to the more hands-on features such as being quicker and easier to strip, clean and maintain. Every aspect of the GR drivetrain is an improvement over that legendary IV core.

Increased internal volume, low operating pressure, improved valve profiling and breech sensing technology all combine to produce the most phenomenal shot quality with exceptional levels of efficiency.

And of course a Geo wouldn’t be a Geo without an SFR. The concept of Solenoid Flow Restriction was born with the Geo, giving the user the ability to tune the bolt speed and shot profile to their own preference. The factory installed high-flow SFR provides a range of adjustment that is suitable for almost every playing condition, but in very hot environments this can be replaced with the additional low-flow SFR.

The rebirth of the Geo offers much more than just the new GR core. With its completely reengineered solenoid and electronics layout package, the Geo R5 takes on a form and feel unlike any previous Geo. The traditional Geo “bump” between the trigger guard and foregrip has been removed. Instead, you find an ultra-skinny body, frame, and foregrip interface that brings the front hand higher and tighter to the barrel axis. The Geo R5 also has an increased space between the trigger guard and foregrip, to suit all playing styles. The traditional visible eye covers have also been addressed to create a clean, more streamlined aesthetic for the marker. Instead, the detents and breech sensor lightpipes are now concealed behind the new foregrip.

The wraparound rear grips now houses the new solenoid assembly and the latest MME electronics package that features an OLED graphical user interface, USB, and Bluetooth® module, which can be used for parameter adjustments via the relevant app, or for controlling other Bluetooth® compatible devices. As per the current generation of Eclipse markers, the body and frame separate quickly and easily with no wires, cables, or hosing between the two parts. The entire Geo R5 package has been redesigned to be a much fresher and efficient platform to be enjoyed by both players and techs alike.

Completing the Geo R5 performance package is the outstanding S63 Pro 3-Piece Barrel System, which revolutionised the levels of control and precision that our high-end markers now offer the player. With its Eclipse PWR Inserts, that have widely been adopted by other brands, this 3-piece system not only performs beyond all expectations but it empowers the user to customize their barrel setup as needed.

FEATURES

• HK Army Custom RAZR Milling

• HK Army Fossil Milled Shaft S63 Barrel Back with 2 PWR Inserts (.689 & .685)

• NEW GR DRIVETRAIN

• NEW ERGONOMIC GROUND-UP REDESIGN

• NEW HIGH FLOW FT SOFT TIP BOLT

• NEW CONCEALED TOOLLESS EYE AND DETENT COVERS

• NEW OLED REAR MOUNTED HEADS-UP DISPLAY

• NEW ADJUSTABLE BOLT ACCELERATION PROFILE VIA SFR (SOLENOID FLOW RESTRICTOR)

• NEW 5-POINT ADJUSTABLE BLADE TRIGGER W/RAKE CONTROL

• NEW S63 PRO BARREL - TOTAL LENGTH 14.5"

• NEW MME ELECTRONICS PACKAGE

• NEW BLUETOOTH ON-BOARD

• NEW NON-SLIP RUBBERISED AND TEXTURED FOREGRIP

• NEW WIRE-LESS FRAME-TO-BODY INTERFACE

• NEW LIGHTPIPE BREECH SENSOR TECHNOLOGY

• NEW 32-BIT HIGH PERFORMANCE, LOW POWER, RISC MICROCONTROLLER

• CLASSIC SPOOL VALVE SHOT CHARACTERISTICS

• QUICK RELEASE BOLT MECHANISM

• RECALIBRATED BREECH SENSING TECHNOLOGY

• 3D MILLED ALUMINIUM BODY

• LARGER VALVE CHAMBER VOLUME

• LOW OPERATING PRESSURE 95-105PSI

• REDUCED BOLT FORCE

• REDUCED RECOIL

• REDUCEDSOUND SIGNATURE

• INCREASED AIR EFFICIENCY

• FRAME WITH EXTENDED REACH AND REVISED GRIP GEOMETRY

• DEFTEK BREECH SYSTEM (DBS)

• ONBOARD SPARE DETENTS

• HOSELESS AIR TRANSFER SYSTEM

• LOW PROFILE POPS ASSEMBLY

• TWO-PIECE TOOLLESS WRAP-AROUND INTERLOCKING GRIPS

• PUSH-BUTTON CONSOLE AND MAGNIFYING DISPLAY LENS

• LOW PROFILE FEED NECK WITH LOCKING SPROCKET WHEEL

• LOCK N' LOAD BATTERY HOLDER

• 2 X AA BATTERY OPERATION

• TOOLLESS BATTERY REPLACEMENT

• SL5 INLINE REGULATOR IN GRIP FRAME

• ULTRA LOW POWER SMC PILOT VALVE

• USER-SERVICEABLE SOLENOID ASSEMBLY

• MICRO USB PROGRAMMING PORT

• E-PORTAL AND E-PORTAL LITE APP COMPATIBLE
